Siemens SGT700DLE,year:2020,10.5kv,50hz,Dry Low Emission China

Item number: 62391

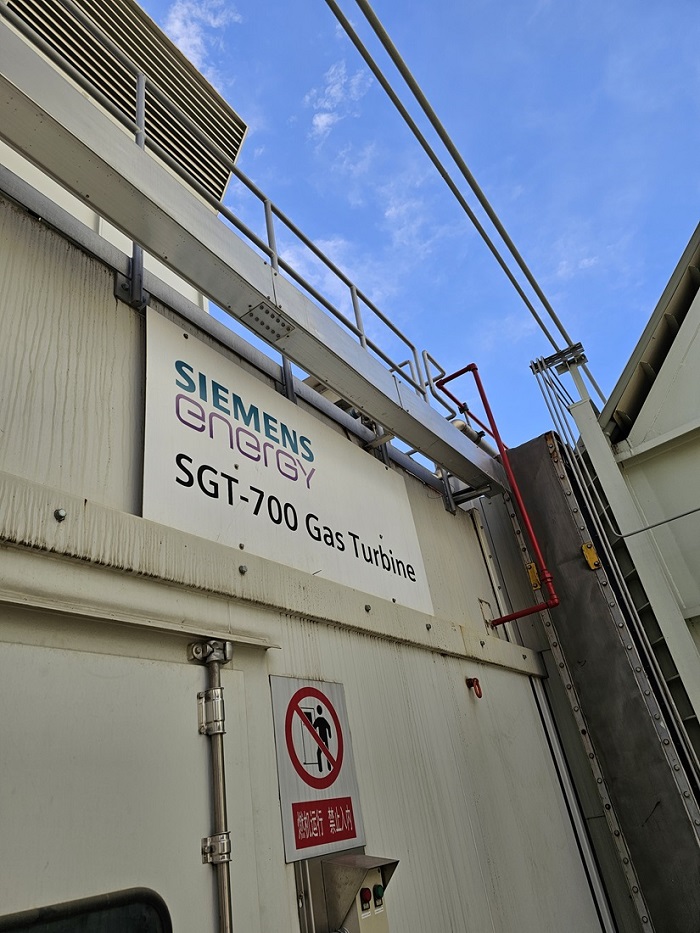

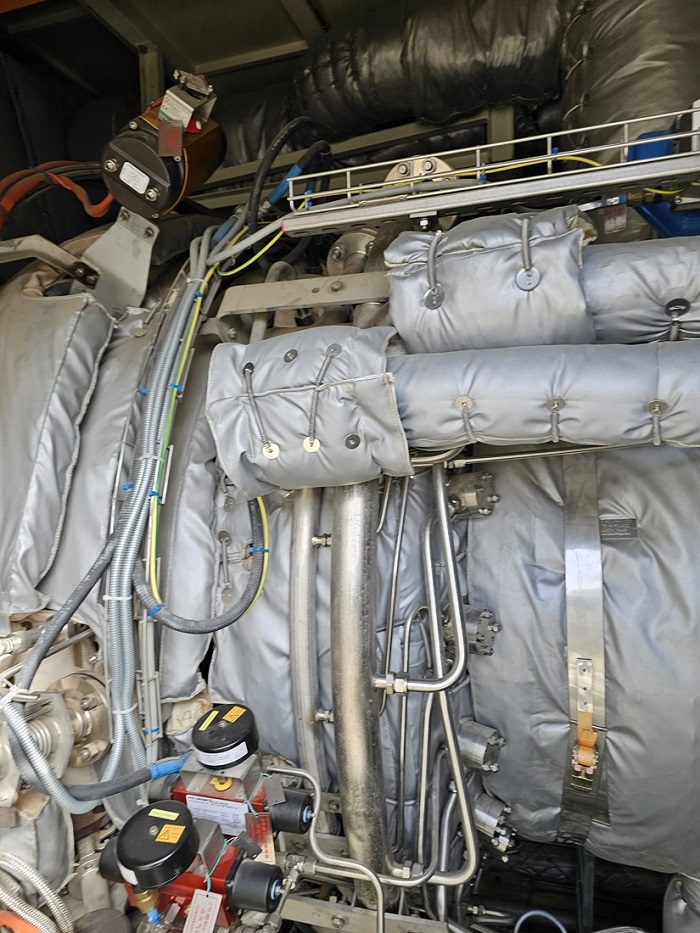

Siemens SGT700DLE, year: 2020, 10.5kv, 50hz, Dry Low Emission
1 Unit

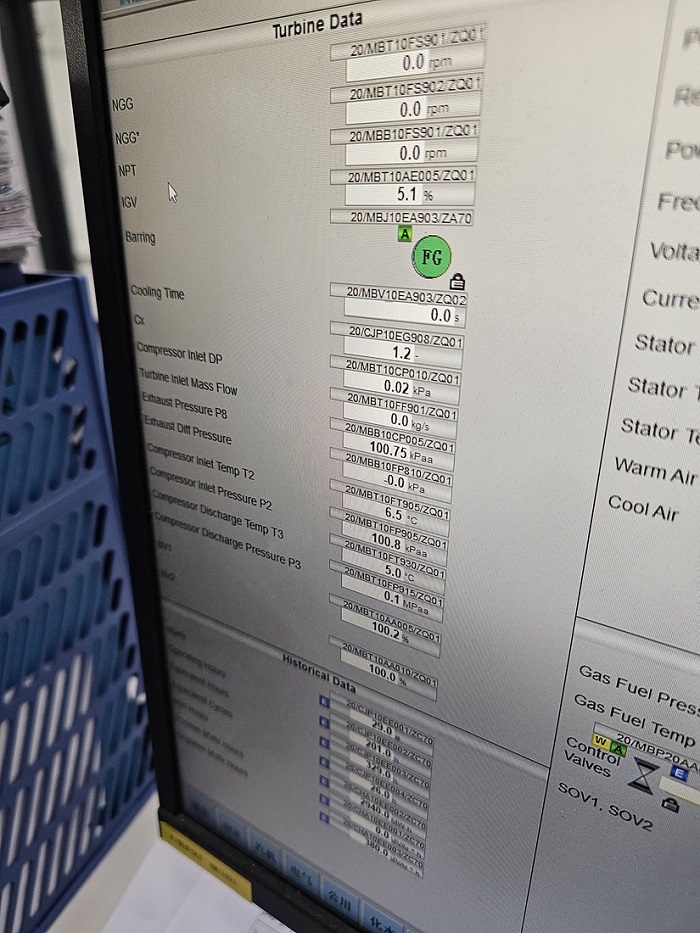

hours: 201
starts: 29 times

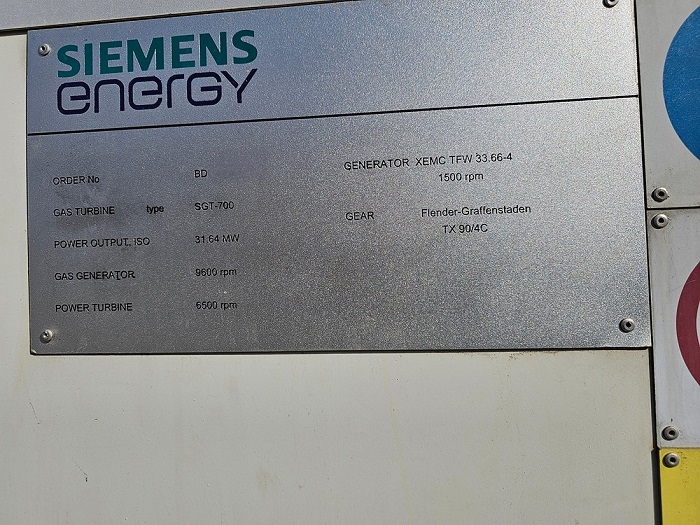

Power of each SGT700DLE: 31.6mw

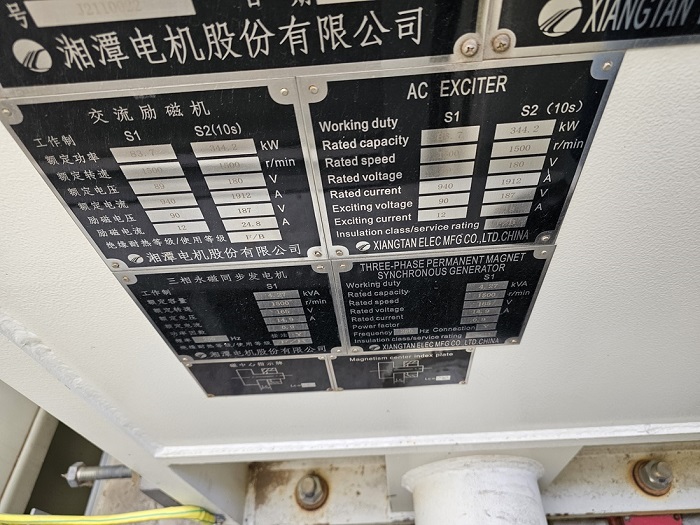

Gas turbine generator maker: XEMC electric
GAS turbine generator model: TFW33.66-4
Rated power of gas turbine generator: 33.66mw
HRSG model: 268/535.5
HRSG output steam: 43.12ton/hour
HRSG steam temperature: 508°C
HRSG max compresure: 5.95Mpa
Year of HRSG: 2021
HRSG maker: Nantong Wanda Energy&Power Technology Co.,LTD
Steam turbine maker: Dongfang Electric Machinery Co.,Ltd
Steam turbine generator: QF-15-2-10.5C
Power of steam turbine generator: 12mw

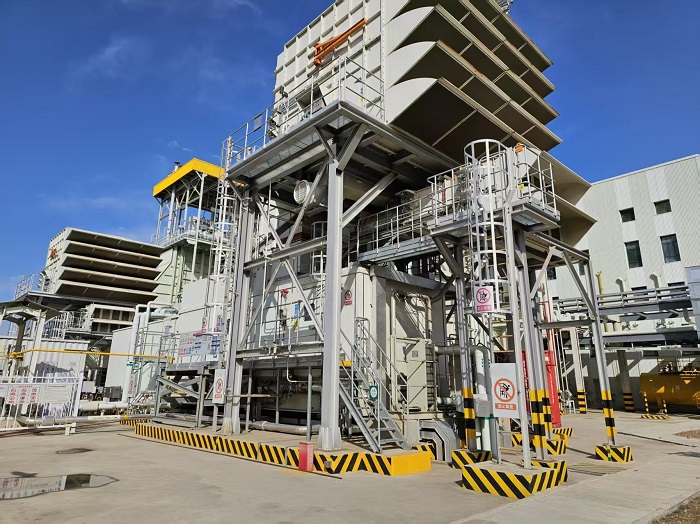

It is one completed power plant

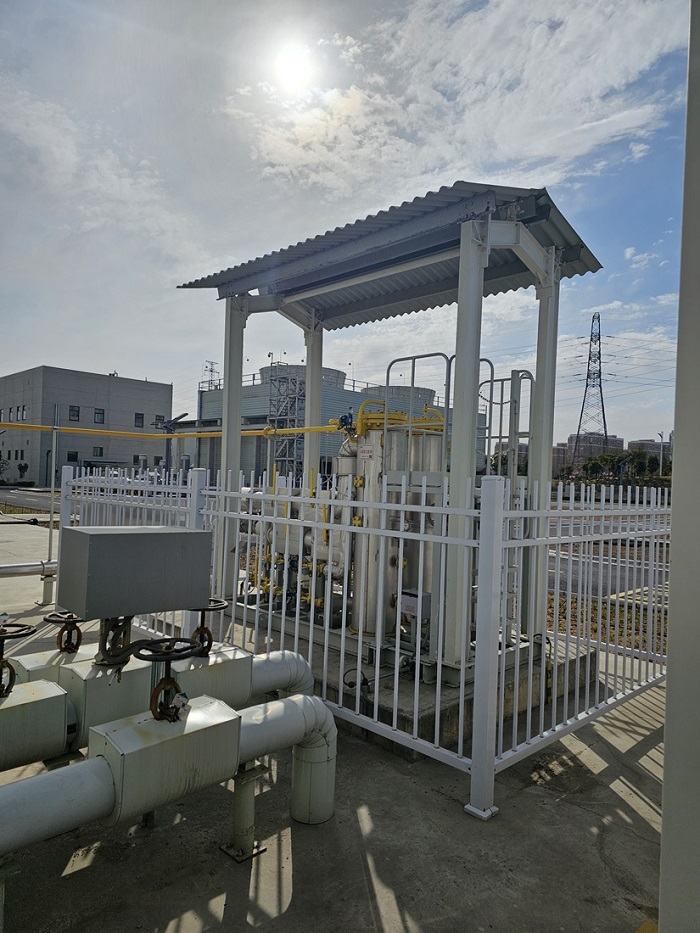

Scope: Turbine+gearbox+Alternator+Cooler+Lube+Added Gas+Water treament+Steam tank+steam turbine(12mw）+HRSG+Steam turbine alternator+Chimney+Tube+Fire fighter+transformer+Control+High volt cabine+low volt cabine+mcc+Hv comp art
Price: 38 250 000$
FOB China

Additional information:

Specification here.pdf Specification here

Price: 38250000.00 $



If you are interested in buying this stock offer or you have any questions feel free to contact us.
